CONNX OpenVMS Installation Procedure

Use the following procedure to install the CONNX OpenVMS server components. Before starting this procedure, be sure to review About the OpenVMS User Account and Password.

To install the CONNX OpenVMS components on an OpenVMS server

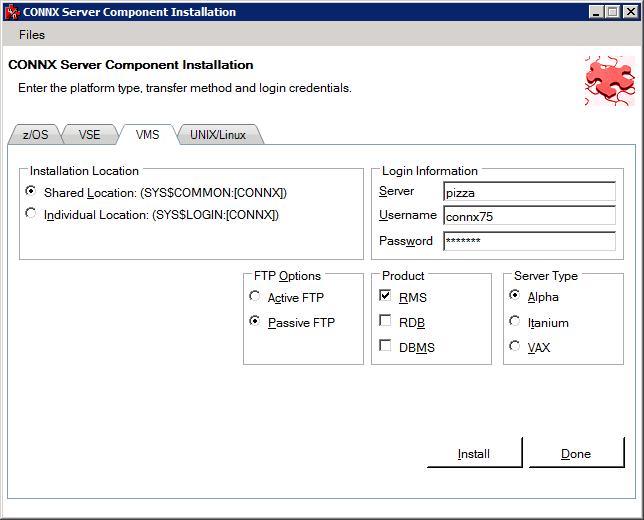

  1. Select a computer on which the CONNX Administrator component is installed. Click the Start button, and then point to All Programs. Point to CONNX Driver and then click CONNX Server Setup. The CONNX Server Component Installation dialog box appears. Select the VMS tab on the CONNX Server Component Installation dialog box.


  1. In the Installation Location frame, select whether this will be a shared or individual location.

Note: The Shared Location option can only be selected for an account that has WRITE and CREATE privileges in the SYS$COMMON directory.

  1. Login Information. Type the VMS Server Name for the OpenVMS server in the Server text box, a privileged user account name in the User ID text box, and its password in the Password text box.

  2. Product. Select the database(s) for which you have licenses.

  3. Server Type. Select the server type on which your OpenVMS system resides.

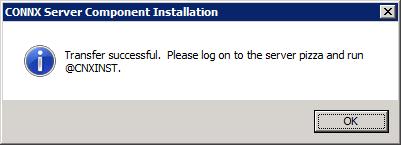

  1. Click the Install button. Allow several minutes for the file transfer process between the CONNX administrator computer and the OpenVMS server. After the transfer process is complete, the Installation Successful dialog box appears.


  1. Click the OK button. The Installation Successful dialog box closes. The CONNX server files have been successfully copied to the OpenVMS server. Click the Close button.

  2. On the CONNX administrator computer, start a terminal emulator and log into the account used to copy files to the server. The $ prompt appears.

  3. After the $ prompt, type @cnxinst.com and then press <Enter>. The monitor displays installation results from the cnxinst.com command. For example, if you are installing Rdb, a successful installation displays:

CONNX for Rdb has installed successfully!



If there are problems, an unsuccessful installation displays:



The CONNX Server setup did NOT complete successfully.



Note: If the installation fails for an Individual Location accout, you have insufficient privileges to perform these actions. In this case, continue with the Individual Account installation and, when finished, have your OpenVMS system administrator perform the License File Only procedure.



Note: If the procedure fails for a Shared Location account, it means the user account has insufficient access privileges. Either change the access privileges for this user account or select a user account with sufficient privileges.

  1. After the cnxinst.com execution is complete (allow several minutes), the $ prompt is returned. If the installation was unsuccessful, you may have used a user name with insufficient privileges. Choose another user name and try the installation again.

  2. Review the CNXSETUP.LOG file to analyze the installation results. To do this, after the $ prompt, type edit/edt CNXSETUP.LOG and press <Enter>.

$ write cnx$screen “********************************************”

$ write sys$output “CONNX for RMS has installed successfully!”



$ write cnx$screen “********************************************”

$ write sys$output “The CONNX Server setup did NOT complete successfully.”



Note: You can transfer the CNXSETUP.LOG to your computer for analysis. See Reviewing CNXSETUP.LOG Using FTP -- TCP/IP.

  1. Disconnect and close the terminal emulator.

  2. Continue by testing the OpenVMS server installation. See Testing the OpenVMS Server Installation.

    Tip:
    If an error message appears, check your entries for OpenVMS server name, user account name, and password, then try again.
